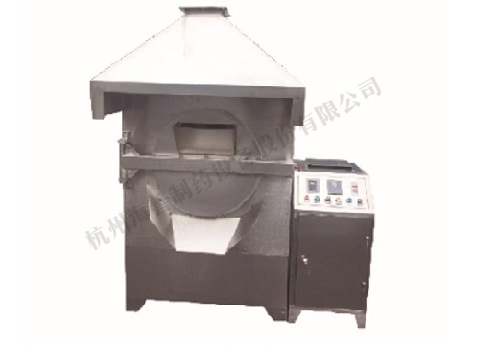

CGDC型炒藥機(電磁、電熱、燃油、燃?xì)猓┲饕猛?
用于中藥飲片的清炒、加固體輔料炒、農副產品炒等。
CGDC型炒藥機(電磁、電熱、燃油、燃?xì)猓┲饕攸c:
炒筒設計成帶縮口的鼓式，有效阻止物料溢出，增加炒筒裝載容積40%以上，提高炒制產能。其中CGDC-500F型，集除塵和廢氣處理為一體，尤其適合小批量炒藥和炒制工藝優化、試驗等。具有定時、控溫、恒溫、溫度顯示等功能。炒筒設有隔熱裝置，提高托輪使用壽命一倍以上。設有文火、中火、武火等多種火力配置，整機美觀、整潔，炒筒適合水沖洗，符合GMP要求。
The main purpose of the CGDC type electromagnetic frying machine is to stir fry Chinese herbal pieces, stir fry with solid ingredients, stir fry agricultural and sideline products, etc.
The main features of CGDC type electromagnetic stir frying machine are as follows:
The frying drum is designed to form a drum with necking, effectively preventing material overflow, increasing the loading capacity of the frying drum by more than 40%, and improving the frying capacity. Among them, CGDC-500F is a combination of dust removal and waste gas treatment. It is especially suitable for small batch frying and frying process optimization and testing. It has functions of timing, temperature control, constant temperature, temperature display and so on. The frying drum has heat insulation device to increase the service life of the supporting wheel by more than one time. Equipped with fire, fire, fire and other various firepower configurations, the machine is beautiful and clean, and the frying pan is suitable for water washing, which is in line with GMP requirements.
CGDC型炒藥機(電磁、電熱、燃油、燃?xì)猓┘夹g(shù)參考:
型號 | 能源 | 參考產量(kg/h ) | 功率 | 重量 | 外型尺寸 | 主要材料 |
CDG-750 | 電 | 60-130 | 36 | 480 | 2.1×0.9×1.8 | 不銹鋼 |
CGY(Q)-750 | 燃油（氣） | 60-130 | 1.5 | 480 | 2.1×0.9×1.8 | 不銹鋼 |
CGY(Q)-900 | 燃油（氣） | 100-120 | 1.5 | 600 | 2.2×1.2×2.0 | 不銹鋼 |
(Z)CGDC-750 | （數控）電磁 | 60-130 | 31.5 | 500 | 2.2×1.1×1.9 | 不銹鋼 |
| (Z)CGDC-900 | （數控）電磁 | 100-120 | 42.2 | 500 | 2.4×1.2×2.0 |
